Fuse Panel C -SC-

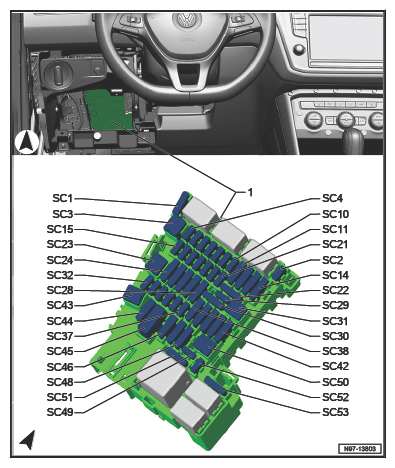

1 - Fuse panel C -SC-
Fuse colors, for the J-Case fuse:
- 50 A - red
- 40 A - green
- 30 A - pink
Fuse colors, for the ATO flat fuse:
- 40 A - orange
- 30 A - light green
- 25 A - natural (white)
- 20 A - yellow
- 15 A - light blue
- 10 A - red
- 7.5 A - brown
- 5 A - light brown
- 1 A - black
Fuse colors, for the mini fuse:
- 20 A - yellow
- 15 A - light blue
- 10 A - red
- 7.5 A - brown
- 5 A - light brown
- 1 A - black
