Fuse Panel B -SB-

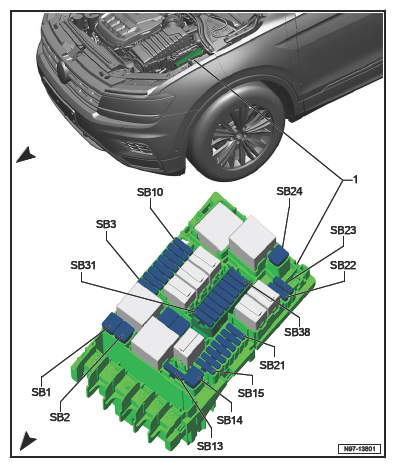

1 - Fuse panel B -SB-

Fuse colors, for the J-Case fuse:

• 50 A - red
• 40 A - green
• 30 A - pink

Fuse colors, for the ATO flat fuse:

• 40 A - orange
• 30 A - light green
• 25 A - natural (white)
• 20 A - yellow
• 15 A - light blue
• 10 A - red
• 7.5 A - brown
• 5 A - light brown
• 1 A - black
