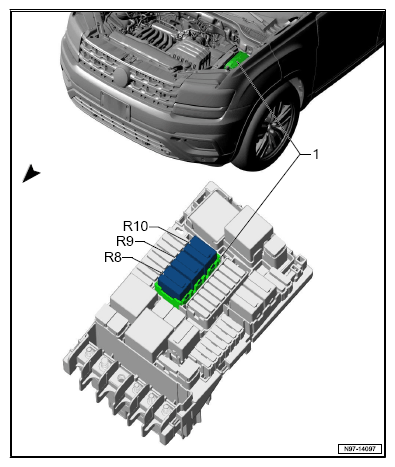

Relay And Fuse Panel 3 -SR3-, Option 1 From March 2017

1  - Relay And Fuse Panel 3 -SR3-

R8  - Engine Component Power Supply Relay -J757-

• Only For Vehicles With 2.0L Gasoline Engine

R9  - Windshield Defogger Relay -J47-

• Only For Vehicles With Heated Windshield (4GW)

R10  - Not Used

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
