Overview - Battery, Battery In Luggage Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

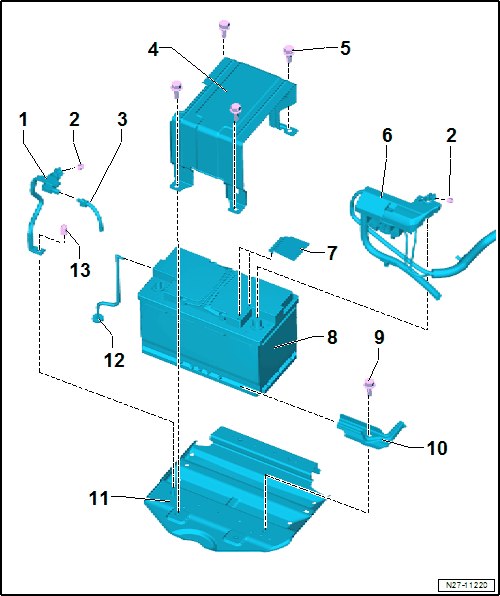

1. Ground Wire
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
   • Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, BATTERY IN LUGGAGE COMPARTMENT .
   • With battery terminal clamp and Battery Monitoring Control Module -J367-
   • Battery Monitoring Control Module -J367-, Adapting. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
2. Nut
   • 6 Nm
3. Connector
   • For the Battery Monitoring Control Module -J367-
   • Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
4. Reinforcement
   • Removing and installing
5. Bolt
   • 20 Nm
   • Quantity: 4
6. Main Fuse Panel
   • With battery terminal clamp
   • Overview. Refer to MAIN FUSE PANEL ON BATTERY, BATTERY IN LUGGAGE COMPARTMENT .
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
7. Cover
   • For positive terminal
8. Battery -A-
   • Removing and installing. Refer to BATTERY, REMOVING AND INSTALLING, BATTERY IN LUGGAGE COMPARTMENT .
   • Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
   • Replacing on vehicles with Start/Stop System. Refer to Installing - Vehicles with Start/Stop System .
9. Bolt
   • 20 Nm
10. Bracket
11. Battery Tray
    • Permanently attached to the body
12. Central Venting System
    • With grommet
13. Nut
    • 20 Nm
