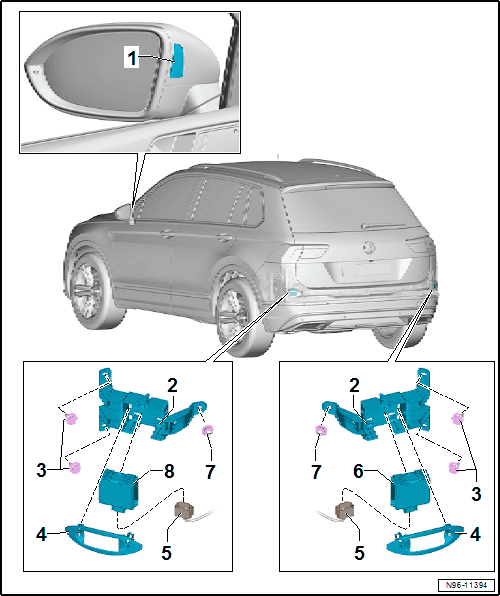

Overview - Lane Change Assistance
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Bracket
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Bolts
- 6 Nm
- Quantity: 2 on each side
- Shield
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Connector
- Lane Change Assistance Control Module -J769-
- Master
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Nuts
- 3.5 Nm
- Quantity: 1 on each side
- Lane Change Assistance Control Module 2 -J770-
- Slave
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
