Tiguan SE, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiring System (Data Link Connectors, Pwr Dist., Grnd Dist.)
>>
OEM Wiring Diagram [DGUA]
>>
Wiring Diagram
>>

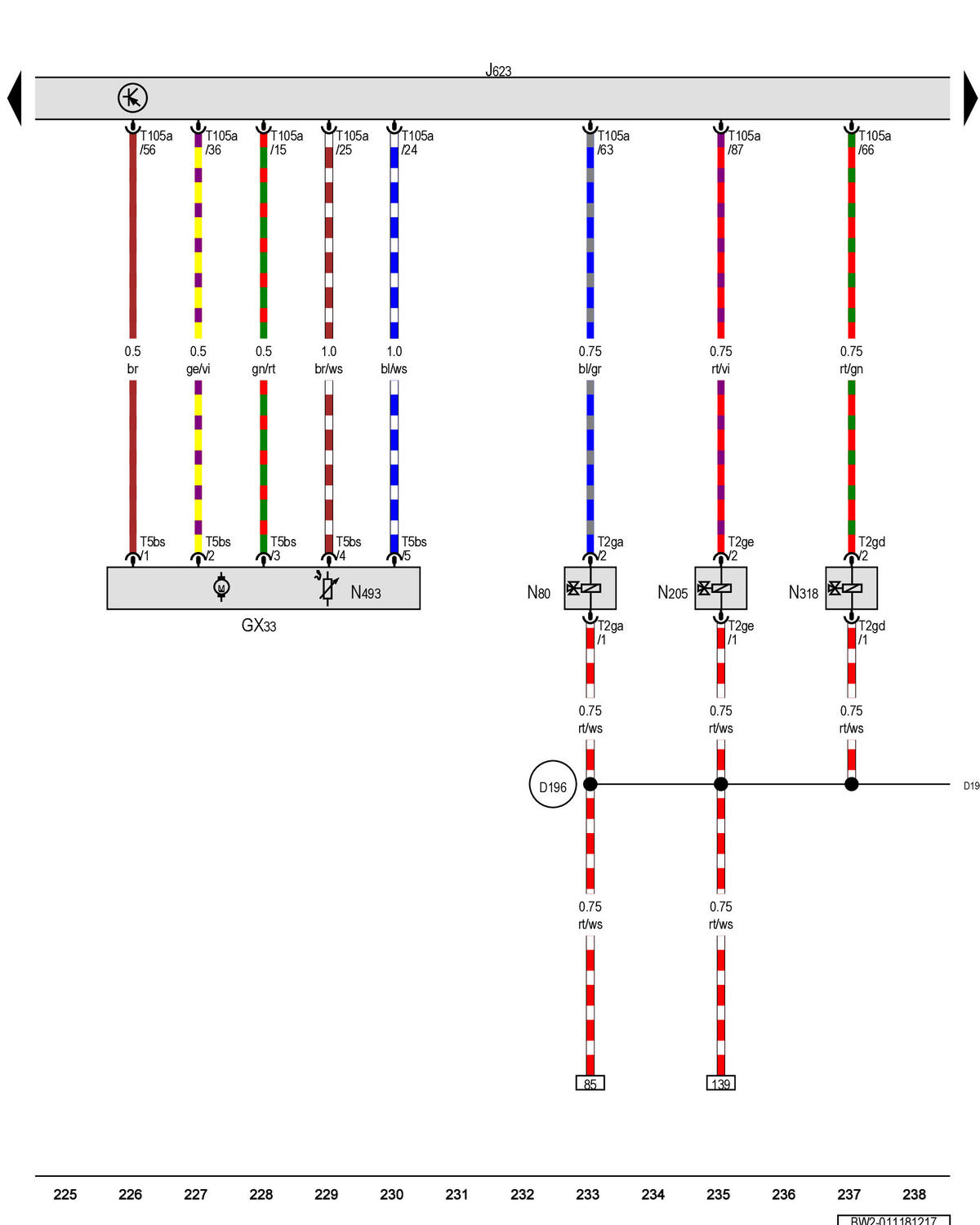

Engine Temperature Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1
>>
Notes
Engine Temperature Control Module, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 1: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
