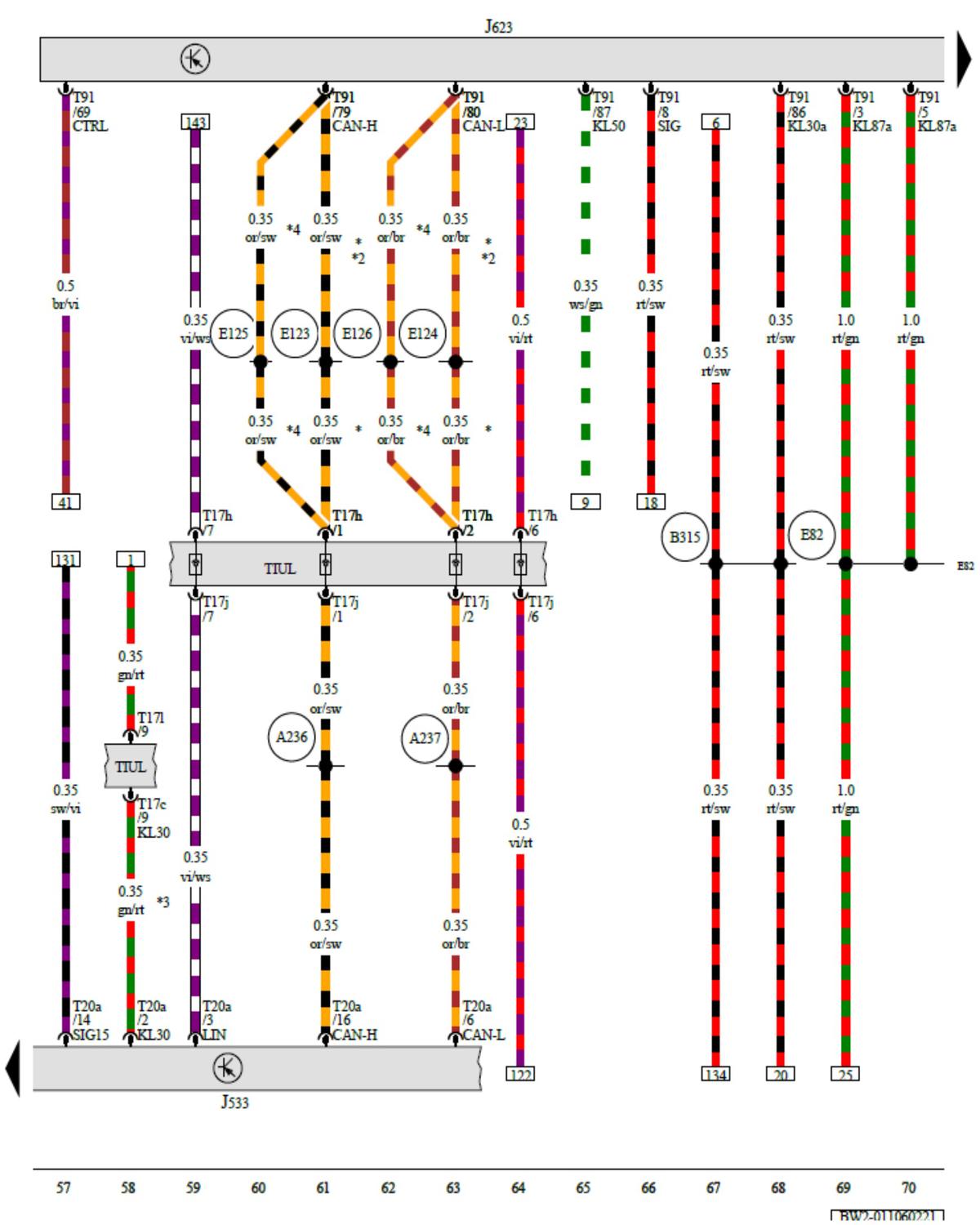

Data Bus On Board Diagnostic Interface: Notes

GWWBW2-011061217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
