Center Console Switch Module 2, Secondary Air Injection Pump Relay, Vehicle Electrical System Control Module, Fuel Pump Control Module, Start/Stop Mode Indicator Lamp, Fuse Panel B, Relay And Fuse Panel 3: Notes

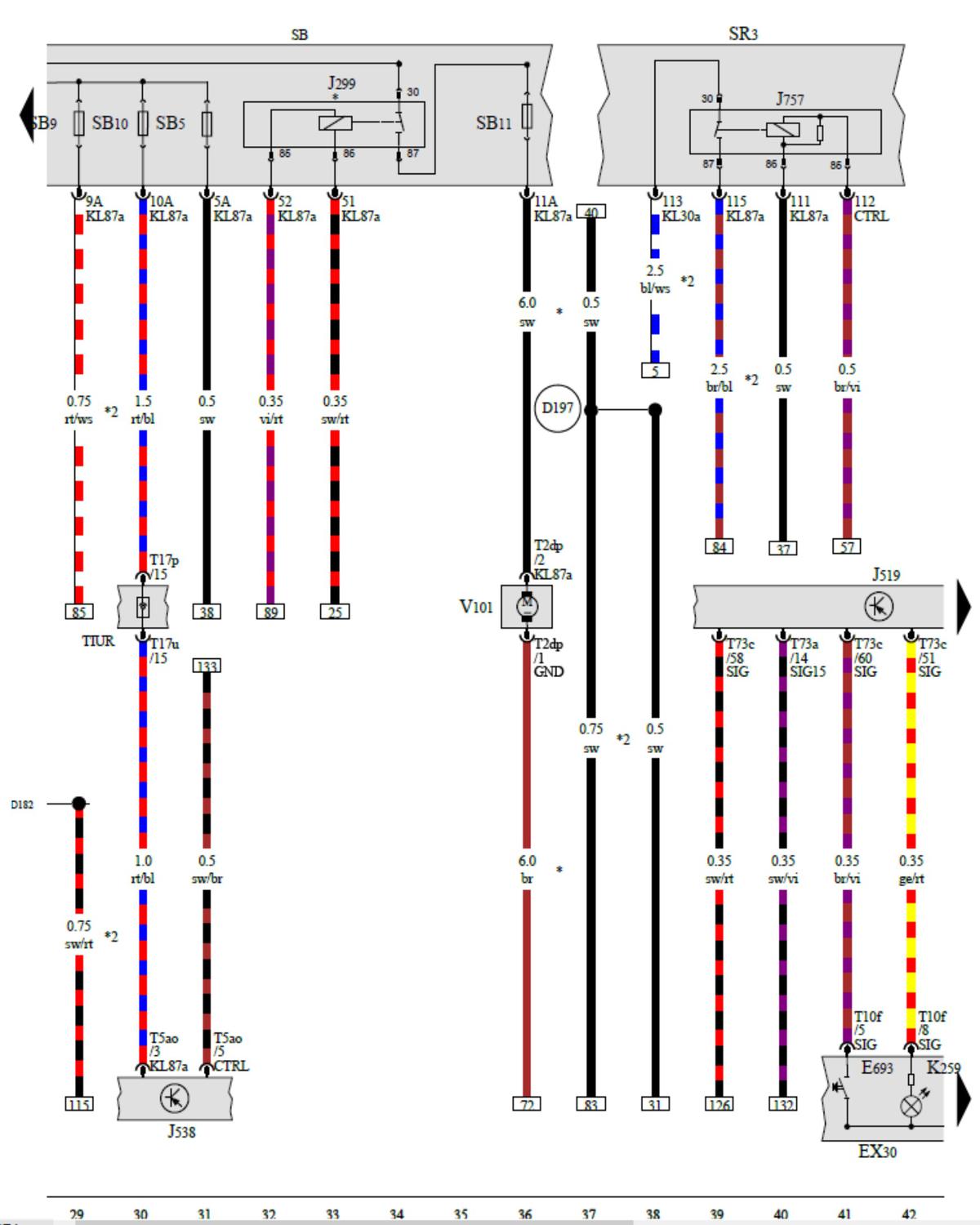

GWWBW2-011041217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
