Home >> Volkswagen >> 2019 >> Tiguan SE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Wiring System (Data Link Connectors, Pwr Dist., Grnd Dist.) >> OEM Wiring Diagram [DGUA] >> Wiring Diagram >> Brake Lamp Switch, Accelerator Pedal Module >> Notes

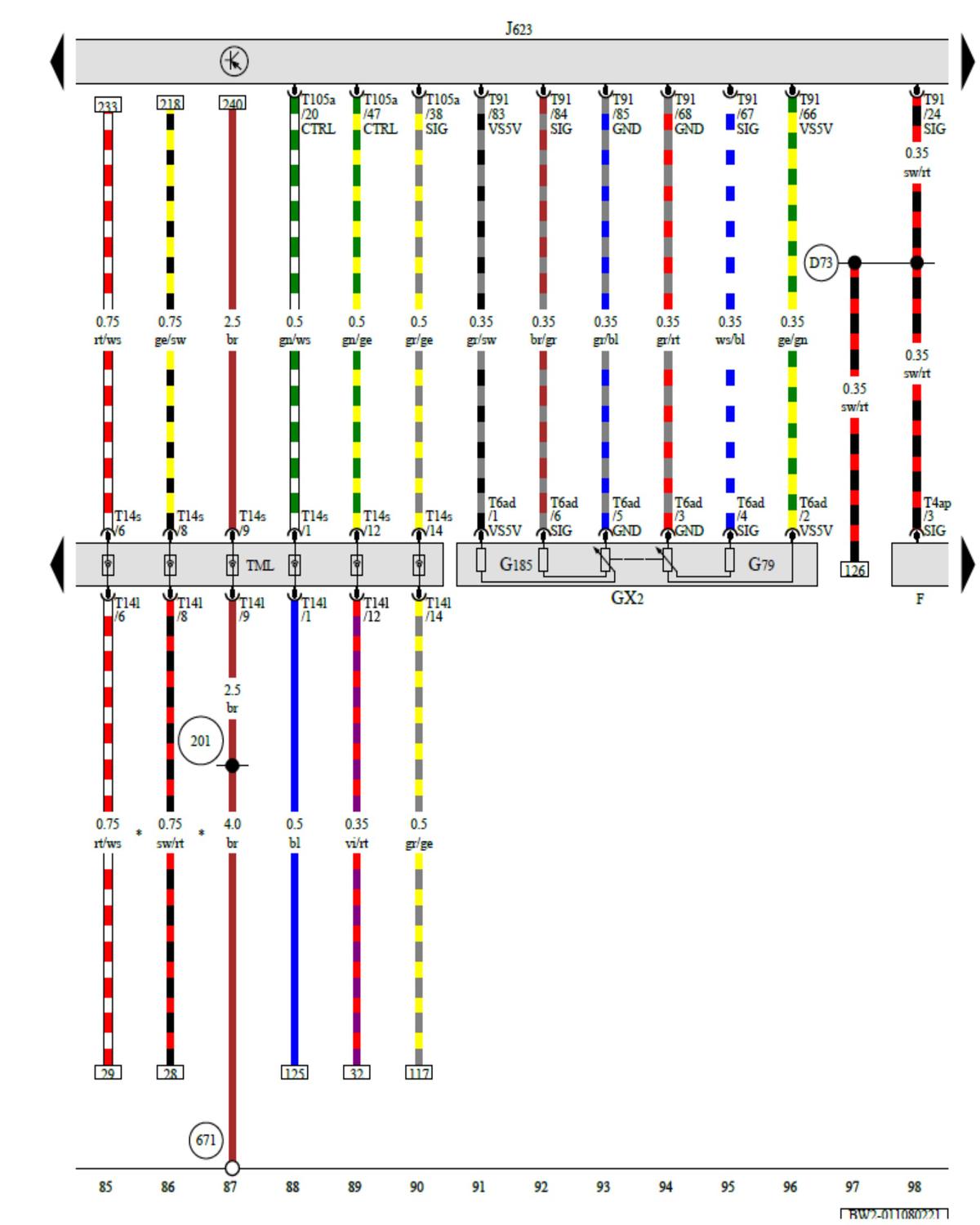

Brake Lamp Switch, Accelerator Pedal Module: Notes

GWWBW2-011081217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
