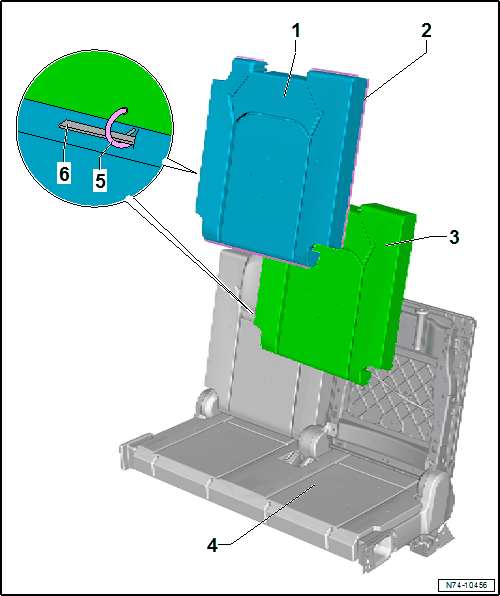

Overview - Rear Seat Backrest Cover And Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Backrest Cover
   • Different equipment levels
   • Allocation. Refer to the Parts Information.
   • Removing and installing
2. Molding Strip
   • Sewn into backrest cover
   • For attaching the backrest cover on the backrest frame
3. Backrest Cushion
   • Allocation. Refer to the Parts Information.
   • Removing and Installing. Refer to REAR SEAT BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
4. Seat
5. Upholstery Clip
   • Attaching the backrest cover to the backrest cushion
   • Replace after removing.
6. Upholstery Wire
   • Component of the backrest cushion
