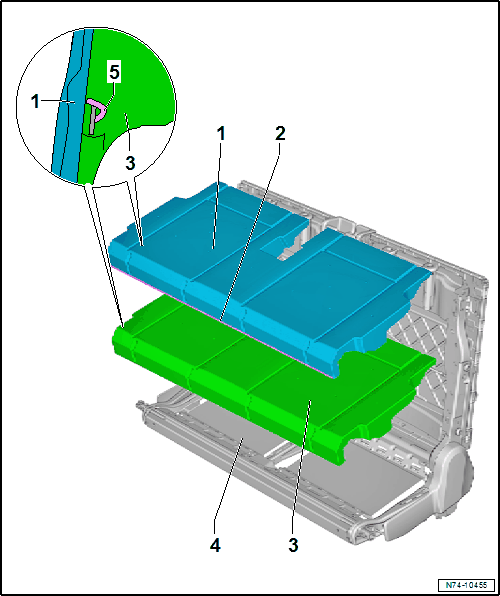

Overview - Bench Seat Cover And Cushion

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seat Cover
- Different equipment levels
- Allocation. Refer to the Parts Information.
- Removing and installing
Molding
- sewn into seat cover
- For engaging the seat cover in the seat frame
Seat Cushion
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to SEAT COVER AND CUSHION, REMOVING AND INSTALLING .
Seat Frame
Upholstery Clip
- For attachment of the seat cover to the seat cushion
- Replace after removing.
