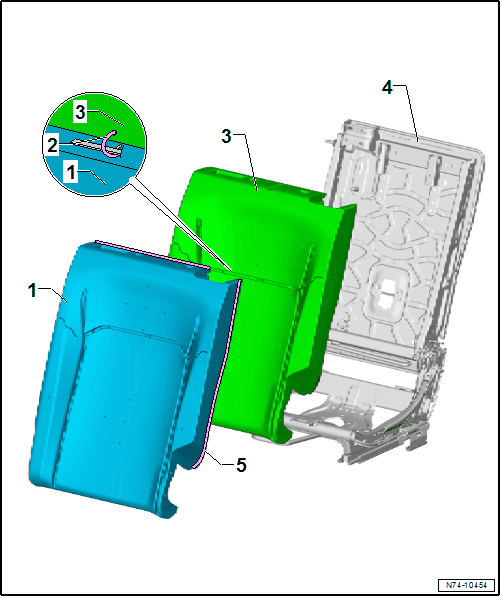

Overview - Cover And Cushion, Sport Bench Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Backrest Cover
   • Different equipment levels
   • Allocation. Refer to the Parts Information.
   • Backrest cover and cushion, removing and installing. Refer to REAR SEAT BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
   • Backrest cover and backrest cushion, separating. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .
   • Check that there are no folds after installing
2. Upholstery Clip
   • For attaching the backrest cover to the backrest cushion
   • Replace after removing.
   • Install at the same location with Upholstery Clip Pliers:VAG1634  .
3. Backrest Cushion
   • Allocation. Refer to the Parts Information.
   • Backrest cover and cushion, removing and installing. Refer to REAR SEAT BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .
   • Backrest cover and backrest cushion, separating. Refer to REAR SEAT BACKREST COVER AND CUSHION, SEPARATING .
4. Backrest Frame
5. Clamping Strip
   • Sewn into backrest cover
   • For attaching the backrest cover on the backrest frame
