Bench Seat Cover And Cushion, Separating: Removing

-- Remove the seat cover and cushion. Refer to BENCH SEAT/SINGLE SEAT COVER AND CUSHION, REMOVING AND INSTALLING .

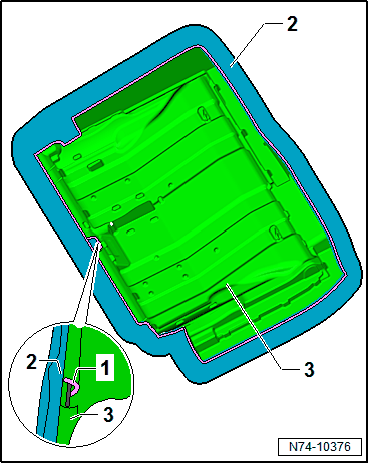

-- Using pliers, cut through all upholstery clips -1- on the back of the seat cushion.

GWWN74-10376Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold back the cover -2- over the cushion -3- until the cushion guides are accessible.

-- Cut through all upholstery clips -1- in the cushion guides.

GWWA74-10500Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the seat cover -3- from the seat cushion -2-.

CAUTION:
  • Do not pull on the seat cover. The seat cover can rip.
  • Do not damage the seat cover.
