Bench Seat/Single Seat Cover And Cushion, Removing And Installing: Removing

-- Move the front seats all the way forward.

-- Unclip the guides -1- for the LATCH child seat anchor (quantity: 4) from the anchors. Refer to LATCH CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

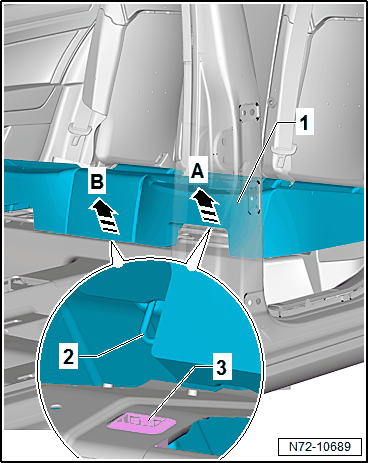

-- Using both hands, grasp the 2/3 rear bench seat under the seat frame.

-- Pull the 2/3 rear bench seat -1- up forcefully with both hands -A arrow- so the wire hook -2- releases from the mounting grommet -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Repeat the procedure on the other side of the 2/3 rear bench seat -B arrow-.

-- Lift the front of the 2/3 rear bench seat -1- slightly and remove the wire frame -2- forward from the rear seat frame -3- -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, disconnect the electrical connection for the seat heating element.

-- With a second technician, remove the rear bench seat from the vehicle.
