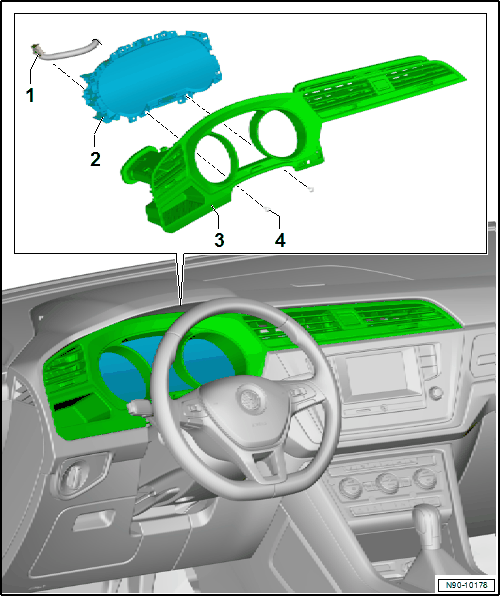

Overview - Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector
Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Bolts
- 1.5 Nm
- Quantity: 2
