Instrument Cluster -KX2-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER WITH ANALOG INSTRUMENTS: Removing

-- Position the steering wheel as far back and down as possible. Use the entire adjustment range of the steering column adjustment for this.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Unclip the upper steering column trim panel from the lower steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the driver side instrument panel decorative trim. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .

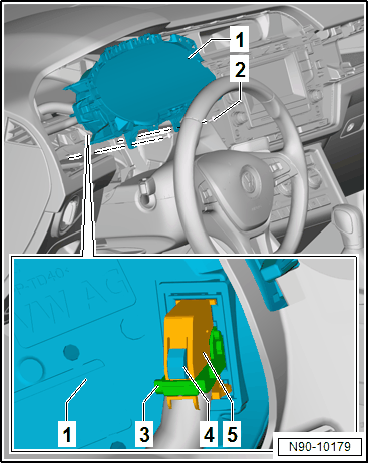

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The Instrument Cluster -KX2- is engaged in the instrument panel. A greater amount of force is necessary for removal.

-- Remove the Instrument Cluster -KX2- -1- until it contacts the steering wheel.

-- Disconnect the connector -5-.

-- To disconnect the connector, press the catch -4-.

-- Pivot the retaining bracket -3- and disconnect the connector -5-.

-- Remove the Instrument Cluster -KX2- on the front passenger side between the steering wheel and the instrument panel.
