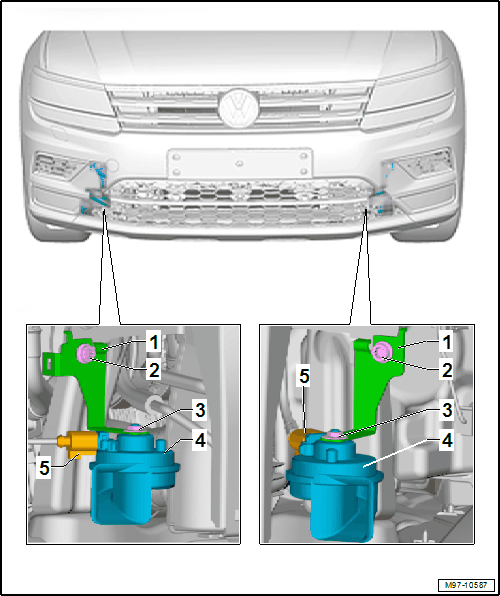

Overview - Horn
NOTE:
The vehicle in the illustration is only a basic outline.
- Bracket
- For the High Tone Horn -H2- / Low Tone Horn -H7-
- Removing and installing. Refer to BRACKET FOR High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Bolt
- 18 Nm
- Nut
- 9 Nm
- Horn
- High Tone Horn -H2- is installed on the left
- Low Tone Horn -H7- in installed on the right
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
- Connector
