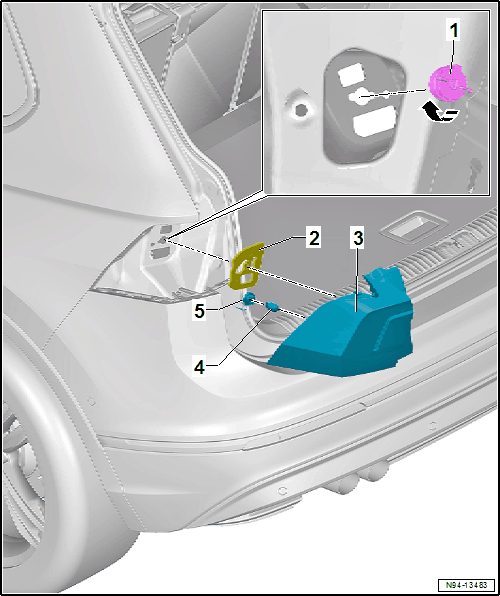

Overview - Body Tail Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fastening Element
- To remove, release and remove in the direction of -arrow-
- As a quick release
Seal
- Replace if damaged
Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Removing and installing. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- Installed depending on vehicle equipment
- Removing and installing. Refer to TURN SIGNAL BULB, REMOVING AND INSTALLING .
Bulb Holder
- Installed depending on vehicle equipment
