Headlamp Housing Repair Kit, Installing

Special tools and workshop equipment required

Torque Screwdriver :VAG1624

NOTE:

Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.

There are different repair kits for the left and right headlamps. Refer to Parts Information.

The removal and installation is described for the left side. Removing and installing on the right side is identical.

-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the rest of the broken mounting tab on the headlamp housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

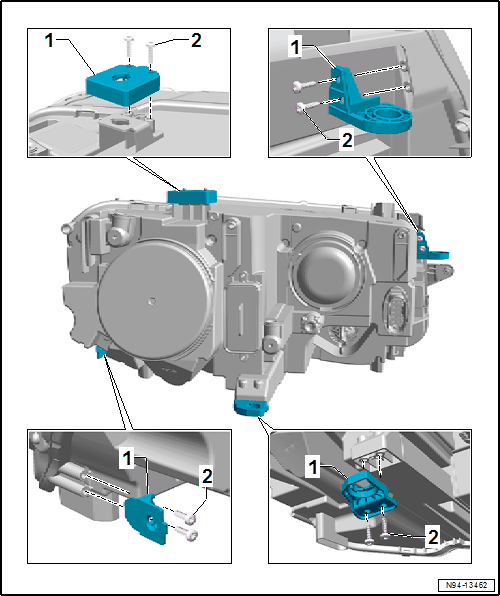

-- Position the mounting tab -1- from the repair kit on the headlamp and secure with the bolts -2-.

-- Install the headlamp and align to the body contour. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Perform a function test.

-- Check the headlamp adjustment and adjust the headlamp if necessary. Refer to HEADLAMP, ADJUSTING .

Tightening Specifications

Refer to OVERVIEW - HEADLAMP HOUSING REPAIR KIT
