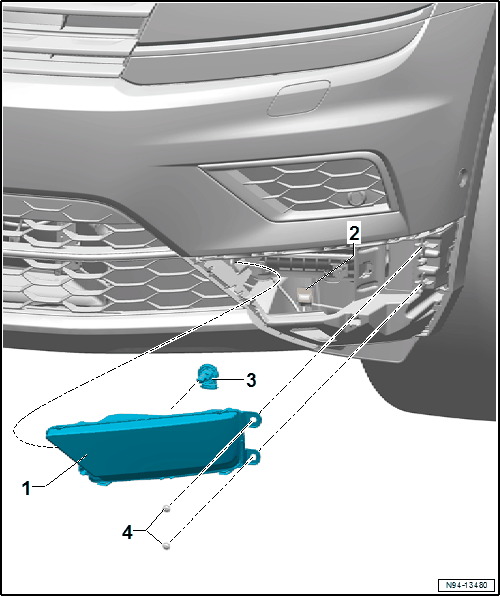

Overview - Fog Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fog Lamps
- Removing and installing. Refer to FOG LAMP, REMOVING AND INSTALLING .
Connector
Fog Lamp Bulb and Cornering Lamp Bulb
- Left Front Fog Lamp Bulb -L22- and Left Cornering Lamp Bulb -L148-
- Right Front Fog Lamp Bulb -L23- and Right Cornering Lamp Bulb -L149-
- Removing and installing. Refer to LEFT AND RIGHT FRONT FOG LAMP BULB -L22- / -L23-, REMOVING AND INSTALLING .
Bolts
- 2 Nm
- Quantity: 2
