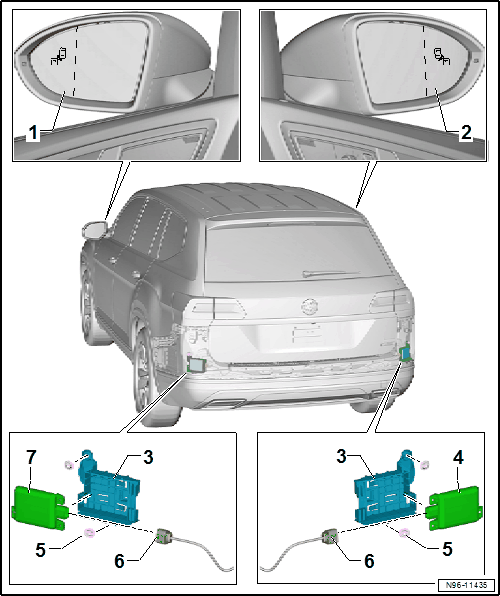

Overview - Blind Spot Detection
- Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
- Removing and installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT AND RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
- Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
- Removing and installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT AND RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
- Bracket
- Removing and installing. Refer to Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Blind Spot Detection Control Module -J1086-
- Master
- Removing and installing. Refer to Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Calibrating. Refer to BLIND SPOT DETECTION, CALIBRATING .
- Nuts
- 3.5 Nm
- Quantity: 2 on each side
- Connector
- Blind Spot Detection Control Module 2 -J1087-
- Slave
- Removing and installing. Refer to Blind Spot Detection Control Module -J1086- / Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING .
- Calibrating. Refer to BLIND SPOT DETECTION, CALIBRATING .
