Lane Change Assistance Control Modules -J769- / -J770-, Removing And Installing: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

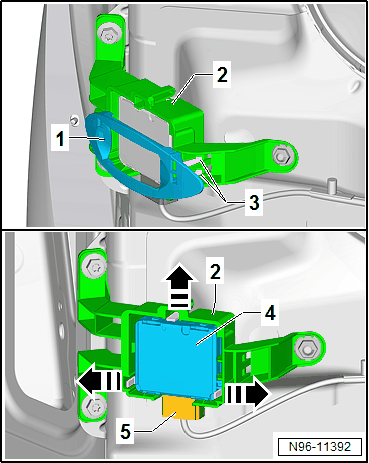

-- Release the retaining tabs -3- on both sides of the shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, remove the shield -1- from the bracket -2- toward the rear.

-- Release and disconnect the connector -5-.

-- Release the retaining tabs on the bracket -2- in the direction of -arrow-.

-- At the same time, remove the Lane Change Assistance Control Module 2 -J770- -4- from the bracket -2- toward the rear.

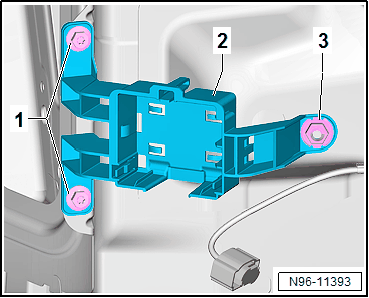

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -3-.

-- Remove the bracket -2-.
