Left And Right Ambient Roof Lamp -W76- / -W77-, Removing And Installing: Removing

-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the upper B-pillar trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .

-- Remove the front interior lamp

-- Remove the roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Loosen the front headliner and place it on the headrests. Refer to HEADLINER, REMOVING AND INSTALLING .

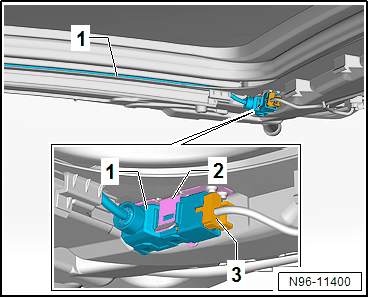

-- Release and disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the connector housing on the Left Ambient Roof Lamp -W76- -1- from the clip -2-.

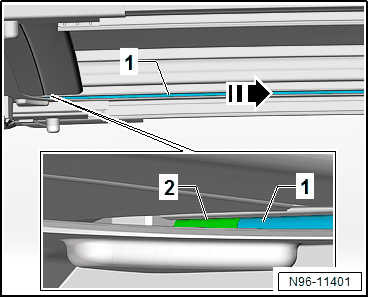

-- Carefully guide the Left Ambient Roof Lamp -W76- -1- forward -arrow- out of the sunroof frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- While doing so, pay attention to the end cap -2- on the Left Ambient Roof Lamp -W76- -1-.

• The end cap -2- must not get stuck in the sunroof frame; it must remain on the Left Ambient Roof Lamp -W76- -1-.
