Flashlight -R280-, REMOVING AND INSTALLING: Removing

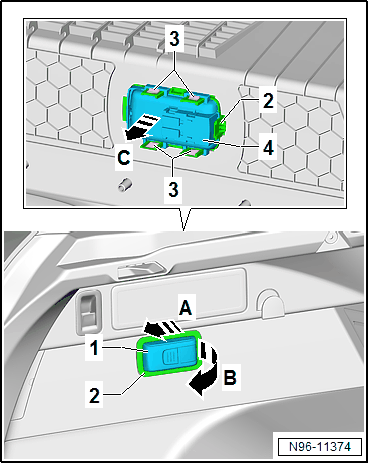

-- Push the Flashlight -R280- -1- in the direction of -arrow A-.

GWWN96-11374Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Flashlight -R280- -1- from the holder in the direction of -arrow B-.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Release the retaining tabs -3- from the trim -2-.

-- At the same time, remove the bracket -4- for the Flashlight -R280- from the trim -2- in the direction of -arrow C-.
