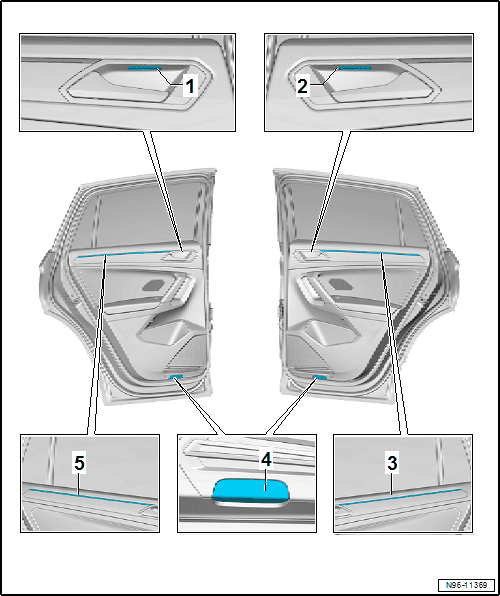

Component Location Overview - Rear Door Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Rear Interior Door Handle Illumination Bulb -L133-
   • Removing and installing. Refer to LEFT AND RIGHT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB -L133- / -L134-, REMOVING AND INSTALLING .
2. Right Rear Interior Door Handle Illumination Bulb -L134-
   • Removing and installing. Refer to LEFT AND RIGHT REAR INTERIOR DOOR HANDLE ILLUMINATION BULB -L133- / -L134-, REMOVING AND INSTALLING .
3. Right Rear Door Ambient Lighting Bulb 1 -L202-
   • Removing and installing. Refer to LEFT AND RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 -L201- / -L202-, REMOVING AND INSTALLING .
4. Door Reflector
   • Removing and installing. Refer to DOOR REFLECTOR, REMOVING AND INSTALLING .
5. Left Rear Door Ambient Lighting Bulb 1 -L201-
   • Removing and installing. Refer to LEFT AND RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 -L201- / -L202-, REMOVING AND INSTALLING .
