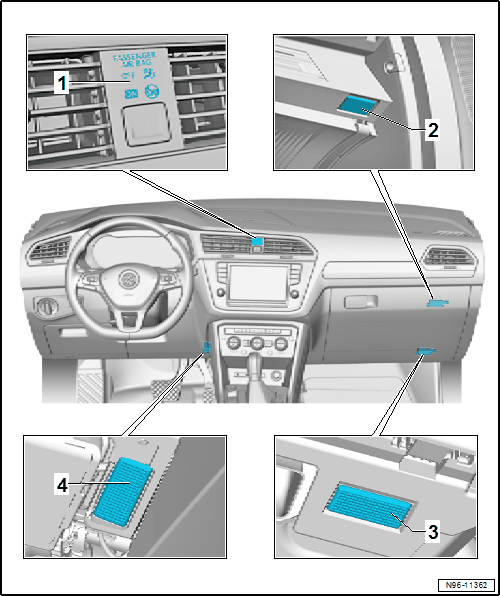

Component Location Overview - Instrument Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • The Front Passenger Airbag -Disabled- Indicator Lamp -K145- is removed together with the Emergency Flasher Switch -EX3-. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
2. Glove Compartment Lamp -W6-
   • Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
3. Right Front Footwell Lamp -K269-
   • Removing and installing. Refer to Right Front Footwell Lamp -K269-, REMOVING AND INSTALLING .
4. Left Front Footwell Lamp -K268-
   • Removing and installing. Refer to Left Front Footwell Lamp -K268-, REMOVING AND INSTALLING .
