Ambient Lamp 1 in Rear Lid -W61-, REMOVING AND INSTALLING: Removing

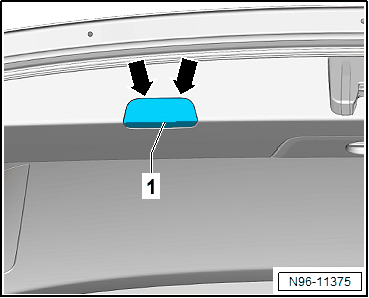

-- Using the : 3409  or a screwdriver, carefully pry the Ambient Lamp 1 in Rear Lid -W61- -1- out of the rear lid lower trim panel -arrows-.

GWWN96-11375Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector from the Ambient Lamp 1 in Rear Lid -W61- -1-.
