Windshield Projection Head Up Display Button -E736-, REMOVING AND INSTALLING: Removing

-- Remove the Rotary Light Switch -EX1-. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .

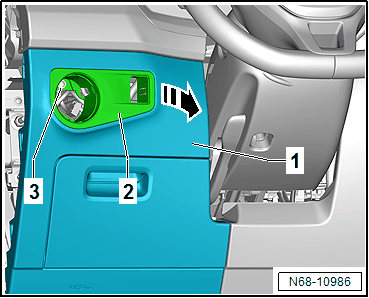

-- Remove the bolt -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim -2- from the instrument panel cover -1-.

-- Release and disconnect the connectors.

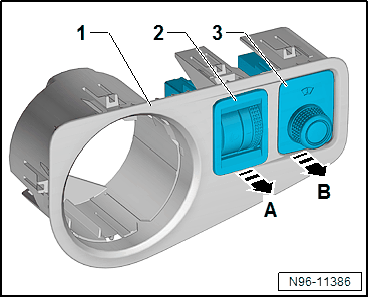

-- Remove the Windshield Projection Head Up Display Button -E736- -3- from the rear side of the trim -1- in the direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
