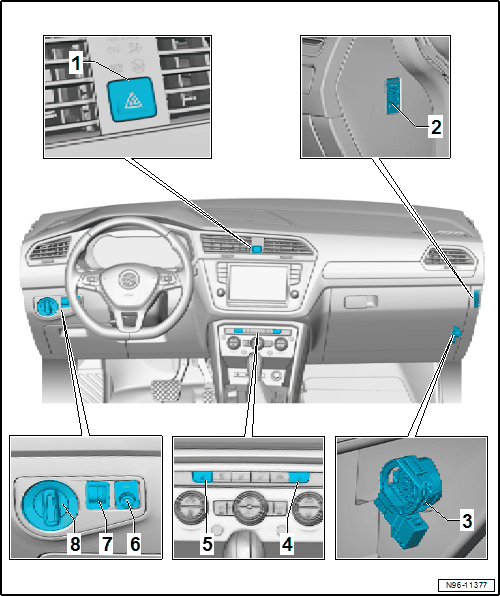

Component Location Overview - Instrument Panel Controls
- Emergency Flasher Switch -EX3-
- Removing and installing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
- Right Seat Heating Button -E654-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Left Seat Heating Button -E653-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Windshield Projection Head Up Display Button -E736-
- Depending on vehicle equipment
- Removing and installing. Refer to Windshield Projection Head Up Display Button -E736-, REMOVING AND INSTALLING .
- Headlamp Range Control Adjuster -E102-
- Depending on vehicle equipment
- Removing and installing. Refer to Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING .
- Rotary Light Switch -EX1-
- Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
