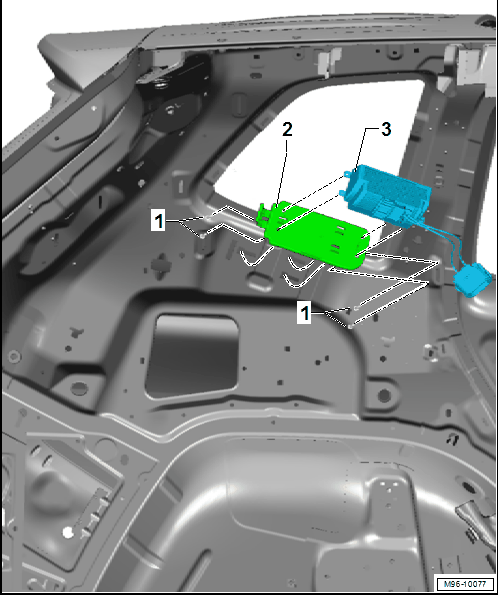

Overview - Converter With Socket, 12 V-230 V

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 1.5 Nm
   • Quantity: 4
2. Bracket
   • Removing and Installing. Refer to Converter with Socket, 12 V-230 V -U13-, REMOVING AND INSTALLING .
3. Converter with Socket, 12 V-230 V -U13-
   • Must not be opened.
   • No repairs on the connector, on the lines and on the 230 V socket
   • Removing and Installing. Refer to Converter with Socket, 12 V-230 V -U13-, REMOVING AND INSTALLING .
