Converter with Socket, 12 V-230 V -U13-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

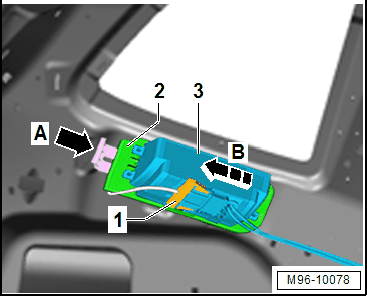

-- Release and disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket for the wires to the 230 V socket from the body.

-- Release the retainer -arrow A- from the bracket -2-.

-- At the same time, push the bracket -2- with the Converter with Socket, 12 V-230 V -U13- -3- in the direction of -arrow B- until it stops.

-- Remove the bracket -2- with the Converter with Socket, 12 V-230 V -U13- -3- from the body.

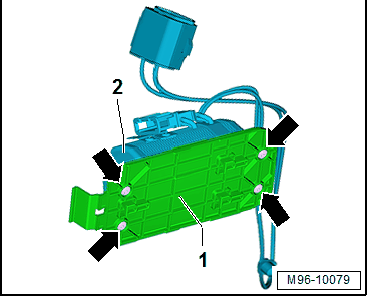

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Converter with Socket, 12 V-230 V -U13- -2- from the bracket -1-.
