Component Location Overview - Adaptive Cruise Control (Acc)

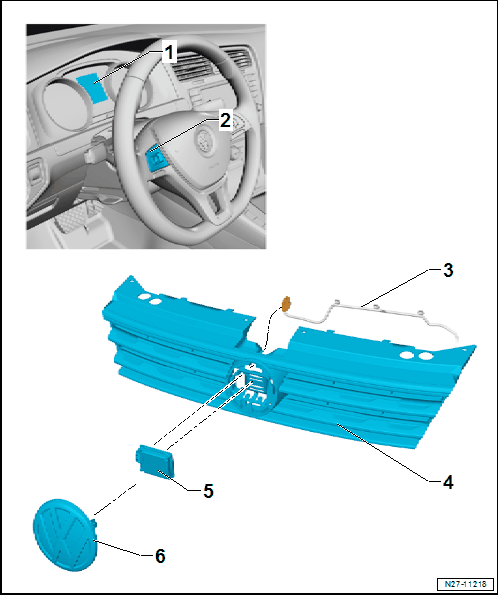

Fig 1: Adaptive Cruise Control (ACC)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Cluster -KX2-
   • With Instrument Cluster Control Module -J285-
   • Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
2. Adaptive Cruise Control Button -E357-
   • Is integrated in the multifunction steering wheel.
   • Removing and installing. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
3. Connector
4. Radiator Grille
   • Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
5. Control Module for Adaptive Cruise Control -J428-
   • Calibrating. Refer to ADAPTIVE CRUISE CONTROL (ACC), CALIBRATING .
   • Removing and installing. Refer to CONTROL MODULE FOR ADAPTIVE CRUISE CONTROL, REMOVING AND INSTALLING .
6. VW Emblem
   • Removing and installing. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .
