Overview - Lane Change Assistance

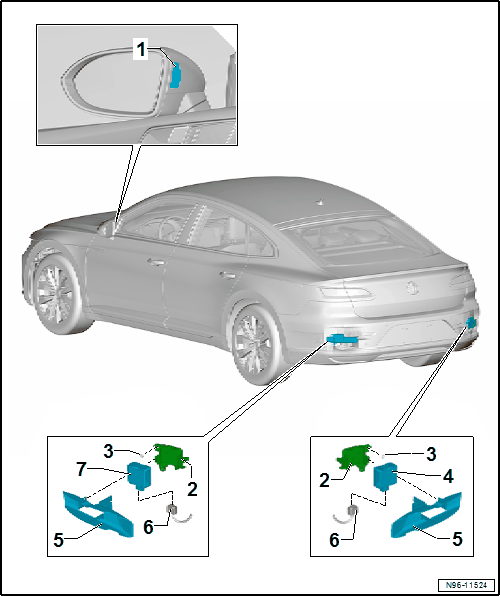

Fig 1: Lane Change Assistance

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233- /Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
Bracket
- Removing and installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
Nut
- 3.5 Nm
Lane Change Assistance Control Module -J769-
- Master
- Removing and installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
Shield
- Removing and installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
Connector
Lane Change Assistance Control Module 2 -J770-
- Slave
- Removing and installing. Refer to Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
