Component Location Overview - Instrument Panel Lamps

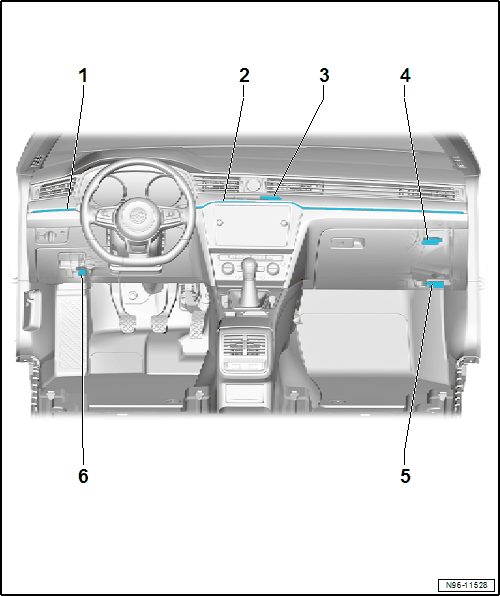

Fig 1: Instrument Panel Lamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Instrument Panel Ambient Lighting Lamp -L229-
   • Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL AMBIENT LIGHTING LAMP -L229- / -L230-, REMOVING AND INSTALLING .
2. Right Instrument Panel Ambient Lighting Lamp -L230-
   • Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL AMBIENT LIGHTING LAMP -L229- / -L230-, REMOVING AND INSTALLING .
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • The Front Passenger Airbag Indicator Lamp -K145- is installed in the Switch Module in Instrument Panel, Center -EX22- and cannot be removed separately. Refer to Switch Module in Instrument Panel, Center -EX22-, REMOVING AND INSTALLING
4. Glove Compartment Lamp -W6-
   • Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
5. Right Front Footwell Lamp -K269-
   • Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
6. Left Front Footwell Lamp -K268-
   • Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
