Component Location Overview - Instrument Panel Controls

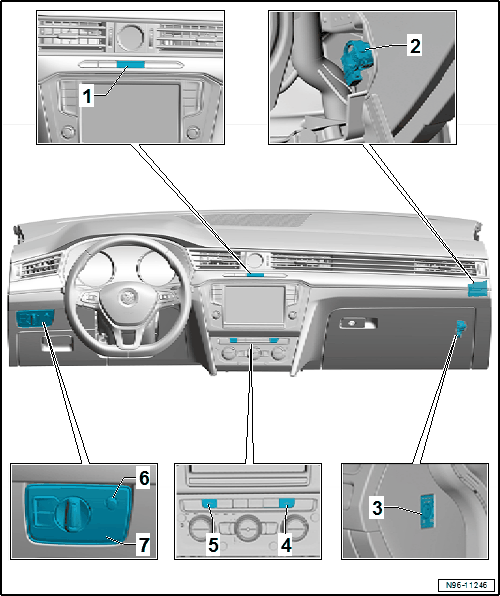

Fig 1: Instrument Panel Controls

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Switch Module in Instrument Panel, Center -EX22-
   • Parking Aid Button -E266-
   • Parallel Parking Assistance Button -E581- / Peripheral Camera
   • Emergency Flasher Switch -EX3-
   • The individual buttons are installed In the switch strip and cannot be replaced separately.
   • Removing and installing. Refer to Switch Module in Instrument Panel, Center -EX22-, REMOVING AND INSTALLING .
2. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Overview. Refer to FRONT PASSENGER SIDE AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
4. Right Seat Heating Button -E654-
   • Integrated in the display control head:
     • Heater Control Module -J65- OR
     • A/C Control Module -J301- OR
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- / Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
5. Left Seat Heating Button -E653-
   • Integrated in the display control head:
     • Heater Control Module -J65- OR
     • A/C Control Module -J301- OR
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
6. Windshield Projection Head Up Display Button -E736-
   • Depending on the vehicle equipment
   • Removing and installing. Refer to Windshield Projection Head Up Display Button -E736-, REMOVING AND INSTALLING .
7. Rotary Light Switch -EX1-
   • Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
