Wheel Hubcap, Removing

WARNING: This page is about a different variant/trim than selected.

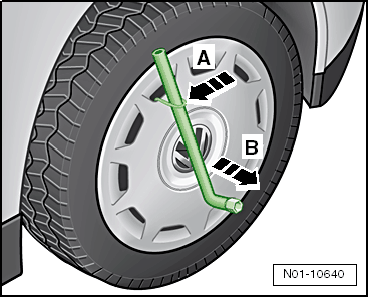

Fig 1: Identifying Wire Clip & Wrench From Vehicle Tools -Arrow A- To Remove Full Wheel Trim
GWWN01-10640Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the vehicle has wheel hubcaps as shown, loosen the full wheel cover all around, for example, with the wire clip and wheel wrench from the vehicle tool kit -arrow A- and then remove it -arrow B-.
