Wheel Bolt Caps, Removing

WARNING: This page is about a different variant/trim than selected.

CAUTION:

On vehicles with alloy wheels, do not pry out the wheel bolt caps with screwdriver. Rather, only use the special tool designed for this purpose (pulling hook in vehicle tool kit).

NOTE:

The wheel bolt caps must be removed before the wheel bolts can be loosened or tightened.

The pulling hook for removing the caps is located in the vehicle tool kit.

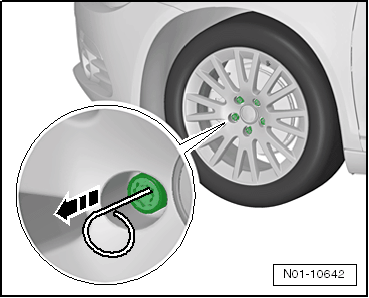

Fig 1: Identifying Pulling Hook To Remove Cover Caps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the wire through the opening in the cap.

-- Remove the cap.
