Center Hubcap, Wheel Bolt Caps and Wheel Hubcap, Installing

WARNING: This page is about a different variant/trim than selected.

-- Press the center hubcap on to the opening. Make sure -A and B- fit exactly onto the rim.

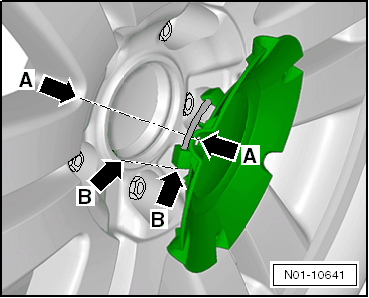

Fig 1: Identifying Center Hubcap Pressed On Opening To Fit -A And B- Exactly On Rim

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the caps on the wheel bolts.

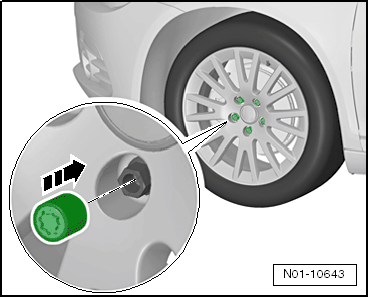

Fig 2: Identifying Installation Of Caps On Wheel Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install the wheel hubcap evenly onto the steel rim. Make sure the valve -B- is seated inside the opening -A- in the cap.

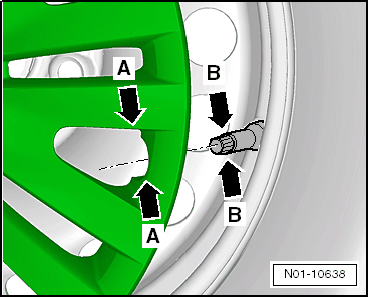

Fig 3: Identifying Alignment Of Valve Recess In Wheel Cover To Inflating Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

After the procedures have been completed, place the adapter and pulling hook back in the vehicle tool kit.
