Anti-Theft Wheel Bolts, Loosening/Tightening

WARNING: This page is about a different variant/trim than selected.

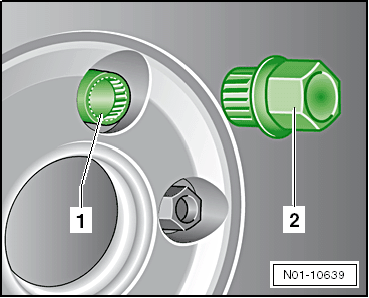

Fig 1: Identifying Anti-Theft Wheel Bolt And Key

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

A special adapter is required to loosen/tighten anti-theft wheel bolts. It is included in the vehicle tool kit.

Do not use an impact wrench to loosen the anti-theft wheel bolts (lockable wheel bolts).

If the adapter to loosen/tighten the anti-theft wheel bolts is not present in the vehicle, use the master wheel bolt key set.

Special Tools And Workshop Equipment Required

Wheel Lock Set:T10101

Fig 2: Identifying Master Wheel Bolt Key Set T10101
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wheel Lock Set:T10313

Fig 3: Identifying Master Wheel Bolt Key Set T10313
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1332 40-200 Nm:VAG1332

Fig 4: Identifying Torque Wrench 1332
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the adapter -2- into the anti-theft wheel bolt -1-.

Fig 5: Identifying Anti-Theft Wheel Bolt And Key

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the wrench over the adapter -2-.
