Tie Rod Ends, Checking Play, Attachment And Ball Joint Boots

Perform The Following Procedure:

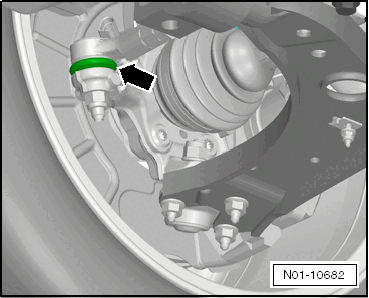

Fig 1: Checking Track Rod Joint Boots

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With the vehicle raised (wheels off ground), check the play by moving the tie rods and wheels. Play: no play

-- Check the attachment.

-- Check the tie rod ball joint boots -arrow- for damage and proper seating.
