Fog Lamps And Other Auxiliary Headlamps, Adjusting

WARNING: This page is about a different variant/trim than selected.

NOTE:

Adjusting the headlamps is invoiced separately.

Right Fog Lamp in Bumper

The adjusting screw on left fog lamp is a mirror image.

-- Set the angle dimension on the headlamp adjusting unit.

Beetle:

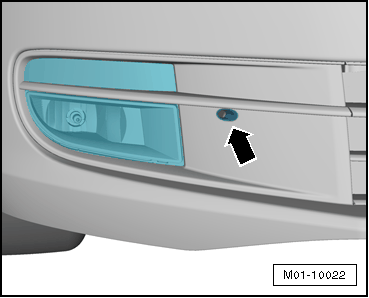

Fig 1: Identifying Adjusting Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the adjusting screw to adjust the beam range -arrow-.

Beetle R-Line:

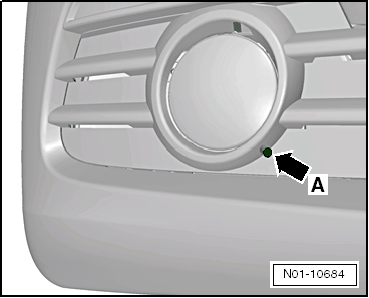

Fig 2: Height Adjustment Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the adjusting screw -arrow A- to adjust the beam height.

Lateral adjustment is not possible.

Other Auxiliary Headlamps

Retrofitted auxiliary headlamps of other systems must be checked and adjusted according to the guidelines applicable to them.
