Rear Disc Brake Pads

WARNING: This page is about a different variant/trim than selected.

-- Shine a flashlight through an opening in the wheel rim.

-- Check the thickness of outer pad visually.

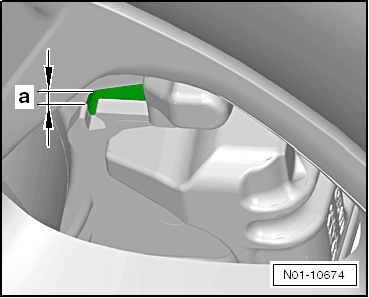

Fig 1: Identifying Pad Thickness -A- Inner And Outer, Not Including Backing Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Shine a flashlight on the inner pad and hold up a mirror.

-- Check thickness of inner pad visually.

a -

Inner and Outer Pad Thickness, not Including Backing Plate

Permissible wear: 2 mm

With pad thickness (without backing plate) of 2 mm, the brake pads have reached their wear limit and must be replaced (repair procedure). Inform the customer!

NOTE:

When replacing the disc brake pads, it is absolutely necessary to check brake rotors for wear! Checking and replacing the brake pads, if necessary, is a repair procedure.

-- Check the brake rotor for wear:

Procedure

Refer to BRAKE ROTORS, CHECKING / REAR BRAKES (CONVERTIBLE) .
