Engine Cover, Removing And Installing, Common Rail Diesel Engines: Removing

WARNING: This page is about a different variant/trim than selected.

-- Loosen and lift the engine cover off of the mounting points -arrow-.

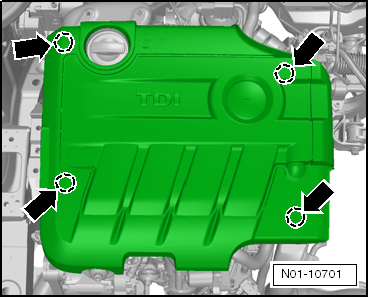

Fig 1: Identifying Engine Cover On Mounting Points
GWWN01-10701Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
