Engine Cover, Removing And Installing, Common Rail Diesel Engines: Installing

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Make sure the four fastening elements (ball sockets) are positioned correctly before installing the engine cover. Adjust their position if necessary. Otherwise the engine cover will get damaged.

-- If necessary, push the ball sockets on the engine cover into the correct installation position.

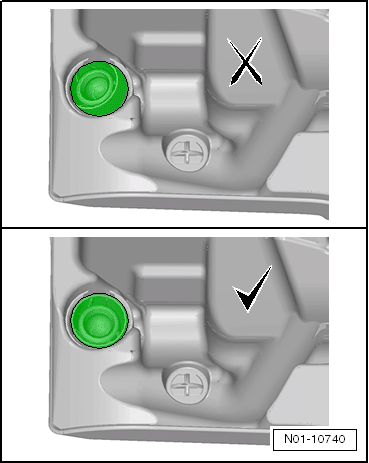

Fig 1: Identifying Ball Sockets On Engine Cover Correct Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the engine cover on the mounting points and press the corners in the catch.
