Engine Cover, Removing And Installing, 2.0L TSI Engines

Removing the Type 1 Engine Cover:

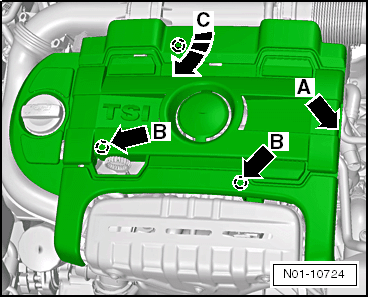

Fig 1: Identifying Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hose from the connection -arrow A- if equipped.

-- Disengage the engine cover at the mounting points -B arrows- and lift.

-- Then remove from retainer -arrow C-.

Installing

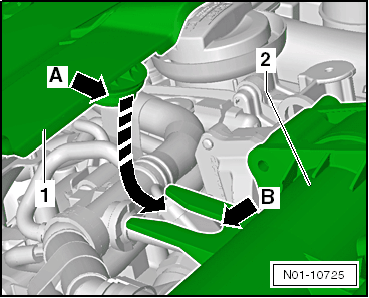

-- Slide the engine cover -1- with the tab -arrow A- at the mounting point -2- into the bracket -arrow B-.

Fig 2: Identifying Engine Cover And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then position the engine cover on the other mounting points and press it on -B arrows- until it noticeably engages.

Fig 3: Identifying Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the hose on the connection -arrow A- if equipped.

Removing the Type 2 Engine Cover:

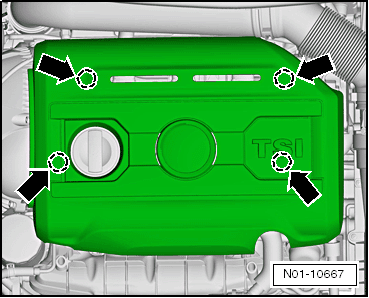

-- Unclip the engine cover at the mounting points -arrows- and remove it upward.

Fig 4: Identifying Unclip Engine Cover At Mounting Points

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Installation is reverse of removal.
