Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

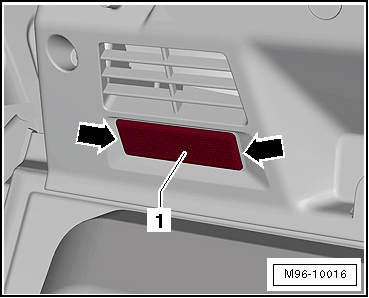

-- Pry out the Luggage Compartment Lamp -W3- -1- with the : 3409  from the side storage compartment/side trim panel -arrows-.

Fig 1: Identifying Luggage Compartment Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

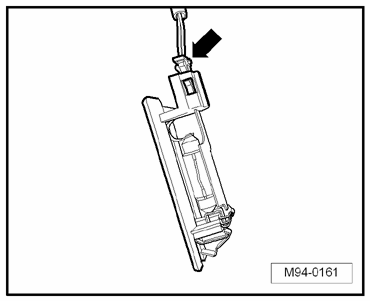

-- Release and disconnect the connector -arrow-.

Fig 2: Luggage Compartment Electrical Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the contact plate -1- for the lamp in the direction of -arrow-.

Fig 3: Identifying Contact Plate & Light Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tubular bulb -2- out of the bulb socket.
