Driver/Front Passenger Vanity Mirror Lamp -W20- / -W14-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Carefully pry the Front Passenger Vanity Mirror Lamp -W14- -1- from the roof trim panel using the : 3409  .

Fig 1: Identifying Front Passenger Vanity Mirror Lamp And Trim Removal Wedge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -arrow-.

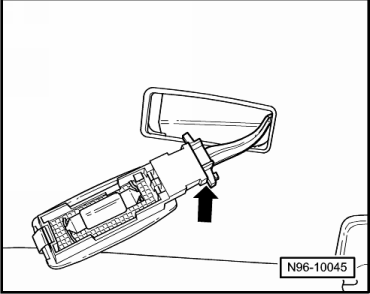

Fig 2: Front Passengers Illuminated Make-Up Mirror W14 And Drivers Illuminated Make-Up Mirror W20 Electrical Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the contact plate -1- for the lamp in the direction of the -arrow-.

Fig 3: Identifying Contact Plate & Light Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tubular bulb -2- out of the bulb socket.
