Central Locking -Safe- Indicator Lamp -K133-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the driver front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release and disconnect the connector.

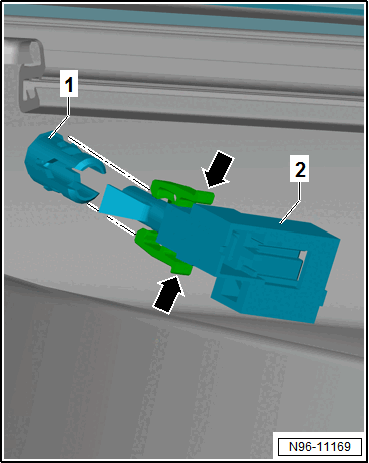

-- Release the retaining tab on the Central Locking -Safe- Indicator Lamp -K133- -2- by pressing -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Central Locking -Safe- Indicator Lamp -K133- -2- from the mount -1-.
