Sunroof Tilt Button 1 -E582-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Removing the Front Interior Lamp -W1-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, COUPE .

-- Release the retaining hooks -arrows- and remove the Sunroof Tilt Button 1 -E582- -2- from the Front Interior Lamp -W1- -1-.

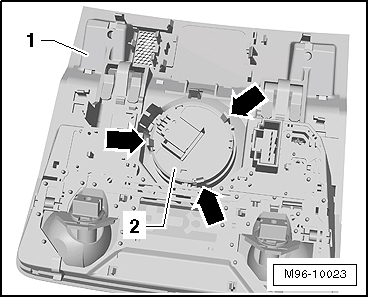

Fig 1: Identifying Tabs
GWWM96-10023Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
