Start System Button -E378-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front center console cover. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Release and disconnect the connector -2-.

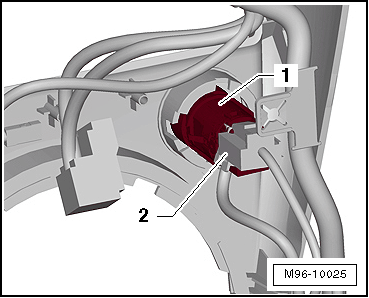

Fig 1: Identifying Start System Button

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tabs and remove the Start System Button -E378- -1- from the cover.
